Brilliance 48° Pro Surgical Binocular Loupes – 5X

Description

Eighteeth Brilliance 48° Pro surgical binocular loupes are designed for clinicians who require high magnification, clear visual detail and improved ergonomics during demanding dental procedures.

The unique optical structure deflects the optical path 48° downward, helping the clinician maintain a more upright head, neck and back position while working.

The loupes provide 5X magnification and a wide field of view, supporting detailed visualisation across restorative, endodontic, surgical and other precision dental procedures.

Ergonomic 48° optical structure

The refractive optical design redirects the viewing path downward by 48 degrees, reducing the need to bend the neck and back forward during treatment.

This helps support a more natural working posture and may reduce strain during long procedures.

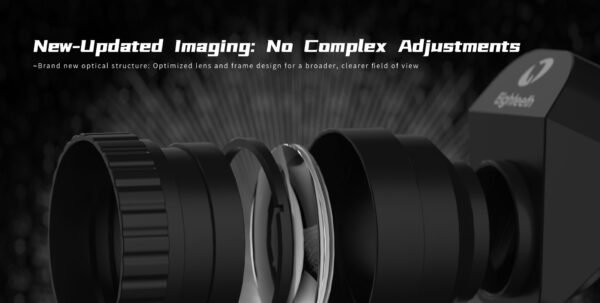

Updated optical system

The Brilliance 48° Pro uses an updated optical and frame structure designed to provide:

• A broader field of view
• Clearer imaging
• Reduced need for complex adjustment

Flexible focus and pupil-distance adjustment

The pupil distance can be adjusted separately on both sides, helping coordinate binocular vision more naturally.

The focal length can also be independently adjusted, which helps compensate for differences between the left and right eye and reduce focusing pressure.

5X magnification

The Brilliance 48° Pro provides:

5X magnification

The manufacturer also specifies a maximum field of view up to 81 mm depending on working distance.

Clear vision for precise dental procedures

The optical system uses:

• Optimised achromatic optical-path design
• Schott glass
• Enhanced visible-light transmission
• Improved colour correction
• Clear, high-quality imaging

Nose-pad system

The Brilliance 48° Pro includes two nose-pad options:

Wide & soft rubber nose pad

• Embedded pre-bent steel strip
• Adjustable height
• Designed for comfortable adaptation to the nose bridge

Direct-attached nose pad

• Can be worn without removing prescription glasses
• Designed to reduce errors associated with eye prescription
• Helps maintain precise working distance

Ergonomic frame design

The centre of gravity is shifted rearward to reduce pressure on the bridge of the nose.

The upgraded frame also allows easier lens customisation and lens swapping.

---

Key features

• 5X magnification
• 48° optical deflection
• Ergonomic viewing posture
• Four working-distance ranges
• Independently adjustable pupil distance
• Independent left/right focal adjustment
• Wide field of view
• Schott glass optics
• Achromatic optical design
• Enhanced colour correction
• High visible-light transmission
• Two nose-pad options
• Upgraded frame
• Black or silver colour options
• Lightweight frame

---

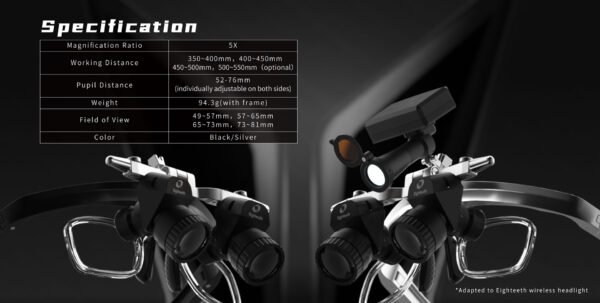

Technical specifications

Specification	Details
Brand	Eighteeth
Model	Brilliance 48° Pro
Product type	Surgical Binocular Loupes
Magnification	5X
Optical deflection	48°
Working distance	350–400 mm / 400–450 mm / 450–500 mm / 500–550 mm
Pupil distance	52–76 mm
Pupil adjustment	Individually adjustable on both sides
Weight	94.3 g with frame
Field of view	49–57 mm / 57–65 mm / 65–73 mm / 73–81 mm
Colour	Black / Silver
Optical glass	Schott glass
Focus	Independently adjustable
