Eighteeth Helios 680 Intraoral Scanner

Description

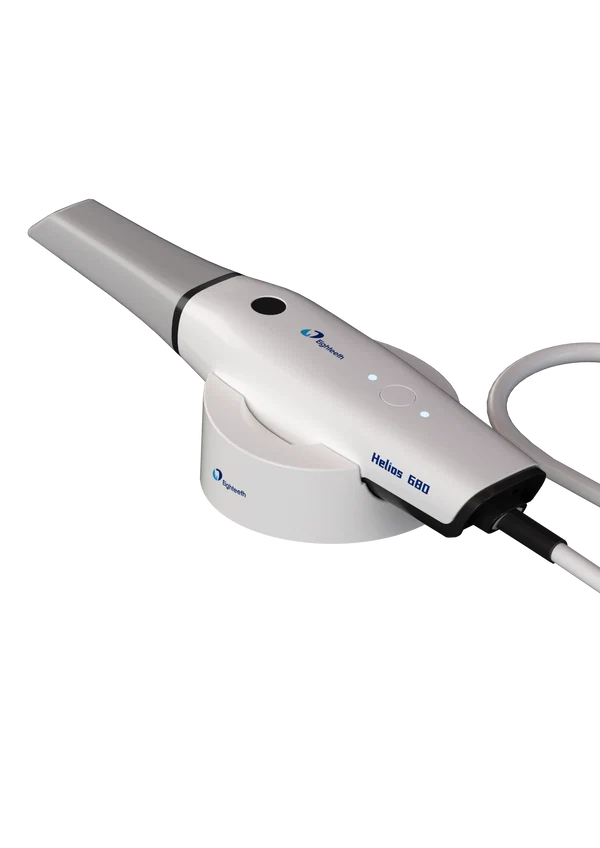

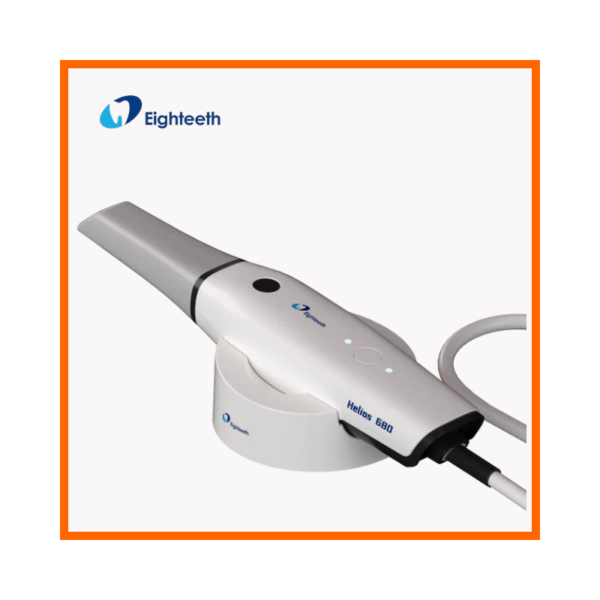

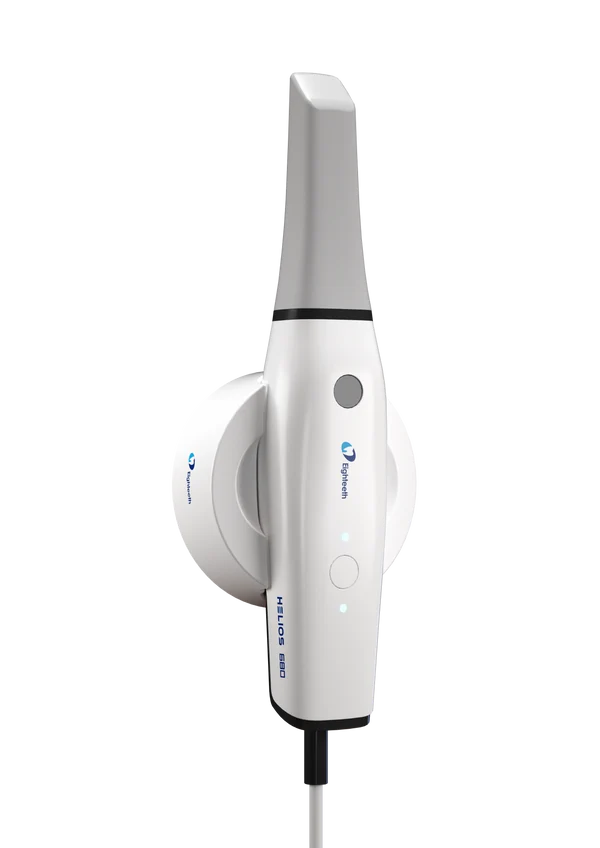

Eighteeth Helios 680 Intraoral Scanner

Bring speed, precision and flexibility into your digital workflow with the Eighteeth Helios 680 Intraoral Scanner.

Designed for modern digital dentistry, the Helios 680 combines high scanning accuracy, fast image acquisition, true-colour capture and intelligent software tools in an ultra-light ergonomic scanner weighing only 161.5 g.

With open STL, PLY and OBJ file export, the Helios 680 provides flexibility for compatible laboratory, restorative, implant and orthodontic digital workflows.

High-Precision Digital Scanning

The Helios 680 delivers:

• 16 μm full-arch accuracy
• 8 μm single-tooth precision
• 30 fps scanning speed
• 18 mm depth of field
• 24-bit true-colour capture
• Lightweight 161.5 g scanner design

Its combination of speed, accuracy and lightweight handling is designed to support efficient everyday clinical scanning.

Calibration-Free Workflow

The Helios 680 features automatic adaptive colour and accuracy calibration.

No routine manual calibration is required, helping keep the scanner ready for use while simplifying the daily digital workflow.

Powder-Free Scanning

The Helios 680 uses LED structured-light technology and does not require scanning powder.

The scanning system is designed for direct digital impression capture while helping simplify clinical preparation.

Reversible Reusable Scanning Tips

The removable scanning tip features a 180° reversible design, allowing flexible positioning during scanning.

Key tip features include:

• 180° reversible design
• Powder-free scanning
• No tip heating required
• Rounded design for patient comfort
• Reusable design
• Up to 100 sterilisation cycles
• Enhanced anti-fogging design

Intelligent Helios Software

The Helios software platform provides intelligent digital tools designed to support clinical scanning, case planning, model management and patient communication.

AI Health Report

AI Health Report visually presents oral-health information and treatment information, helping support communication between the dentist and patient.

Orthodontic Simulation

AI-powered automatic tooth alignment provides before-and-after orthodontic visualisation.

An NVIDIA graphics card is required for Orthodontic Simulation.

Model Builder

Model Builder allows digital model bases to be created directly within the Helios software, supporting model preparation and digital case workflows.

Air Mouse

The Helios 680 scanner can also be used as a remote controller for compatible software functions, including navigation and rotation of 3D models.

Cloud Storage

The Helios software provides 100 GB cloud storage for digital case storage, management and sharing.

Additional Digital Workflow Tools

Helios software also includes functions for:

• Automatic and manual bite registration
• Implant workflow
• Occlusion analysis
• Undercut detection
• Tooth measurement
• Texture mapping
• Margin-line drawing
• AI optimisation
• Shining Mode
• Intraoral camera functions
• 3D model viewing
• Upper and lower jaw switching
• Bite refinement preview

Open Digital Workflow

The Helios 680 supports the following export formats:

STL • PLY • OBJ

Open file export allows scan data to be transferred into compatible laboratory, restorative, implant, orthodontic and other third-party digital dental workflows.

This provides greater flexibility when communicating digitally with compatible dental laboratories and software platforms.

Technical Specifications

Specification	Helios 680
Full-Arch Accuracy	16 μm
Single-Tooth Precision	8 μm
Depth of Field	18 mm
Large Scan Area	16 × 14 mm
Small Scan Area	12 × 12 mm
Scanning Speed	30 fps
Scanner Weight	161.5 g
Colour Capture	24-bit true colour
Imaging Technology	LED structured light
Powder Required	No
Tip Heating Required	No
Scanning Tip	Removable / 180° reversible
Tip Sterilisation	Up to 100 cycles
Cable Length	1.8 m
Connection	USB 3.0
Output Formats	STL / PLY / OBJ
Calibration	Automatic adaptive / calibration-free
Remote Control	Supported
Operating System	Windows 10 / Windows 11

Recommended Computer Requirements

For optimum Helios 680 performance, the recommended computer configuration is:

Component	Recommended Specification
Processor	Intel Core i7-13700 13th Gen or equivalent
Memory	32 GB DDR4, 2666 MHz or higher
Storage	1 TB SSD or higher
Graphics	NVIDIA GeForce RTX 3060, 6 GB VRAM
Display	15.6″ Full HD 1920 × 1080 or higher
USB	USB 3.0 or higher
Operating System	Windows 10 / Windows 11

Installation & Connection

The Helios 680 connects directly to a compatible Windows computer through USB 3.0.

Install the Helios software on a computer meeting the recommended system requirements, connect the scanner and begin the digital scanning workflow.

Routine manual scanner calibration is not required.

Laboratory File Compatibility

The Helios 680 exports:

STL — widely used 3D model format.

PLY — supports 3D geometry with colour information.

OBJ — supports detailed 3D model data and texture information.

These open formats provide flexibility when sending digital cases to compatible laboratories and third-party digital dental software.

Ordering & Delivery

The Eighteeth Helios 680 is a special-order product.

Estimated delivery: 3–5 weeks from order confirmation.
